Facilities

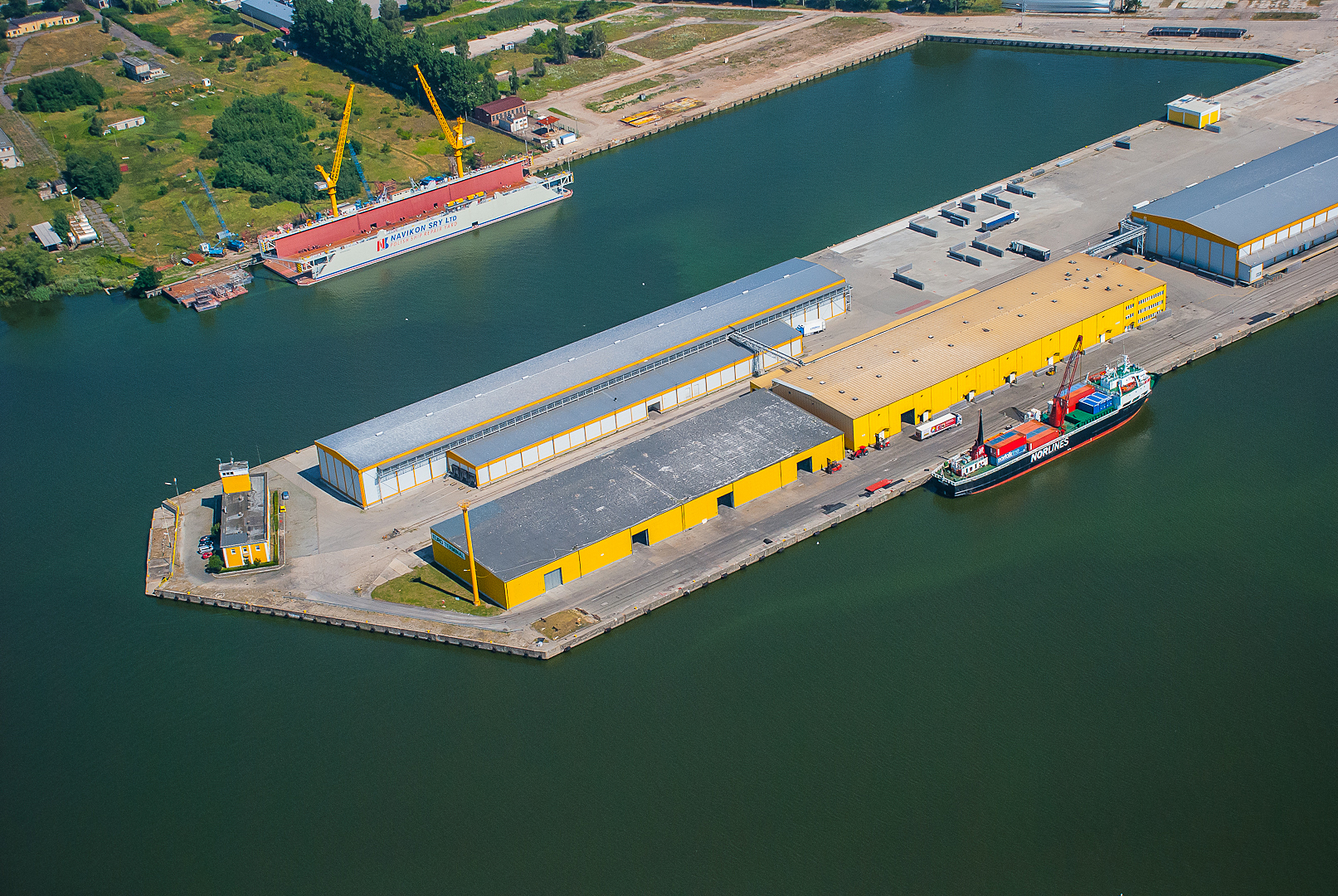

Repair berth in Świnoujście, 5 m draft, 200 m
Loading berth 8 m, 400 m
Repair berth in Szczecin: 7 m draft, 300 m

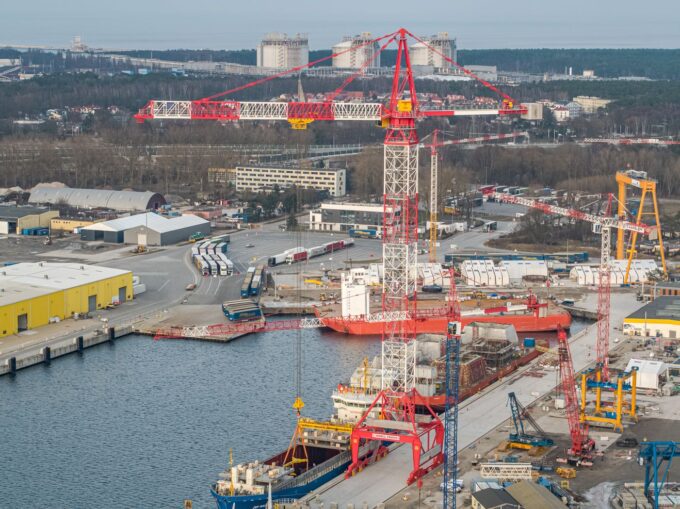

Cranes
mobile cranes: up to 100 tons
Floating crane up to 270 tons
Trailer up to 120 tons
Halls

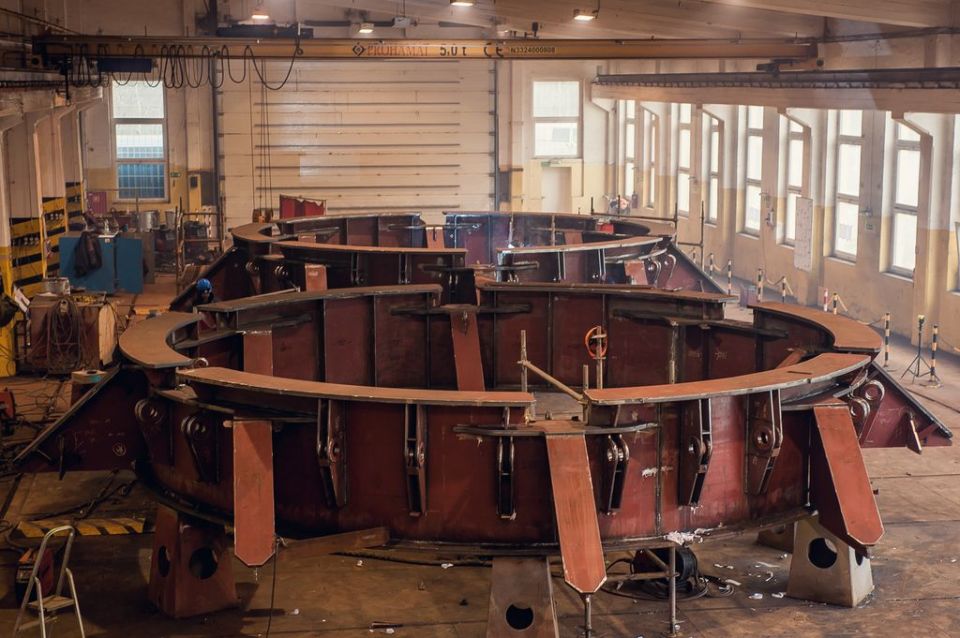

Hall No 1: crane 10 tons; crane 8 tons; gate 11,5m x 5,8m; height under the hook 4m, workshops

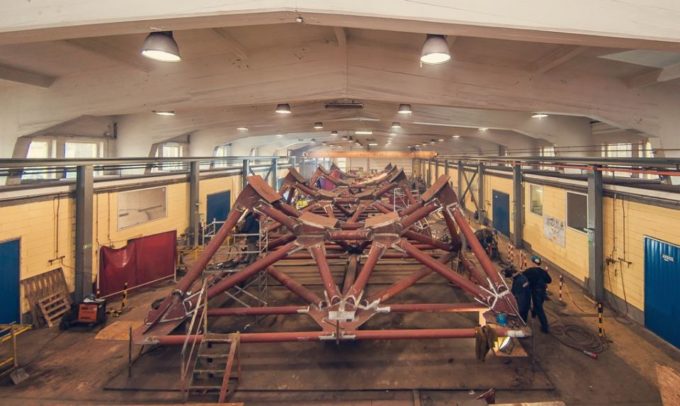

Hall No 2: cranes 2×5 tons; gate 8m x 5,4m; height under the hook 4,3m, workshops
Technical gases in accordance with the HSE.
Steel hall – 3 pcs.

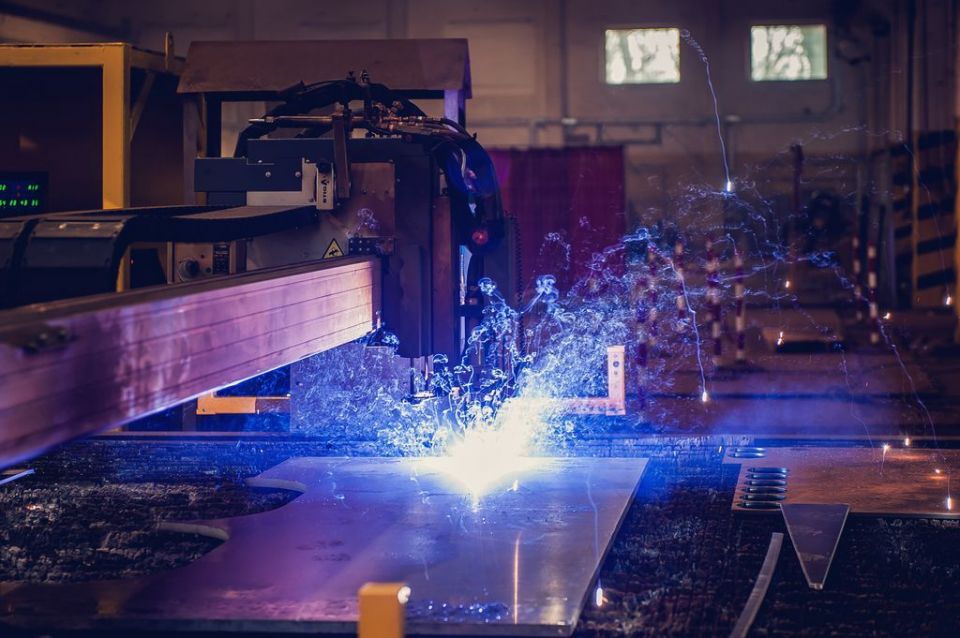

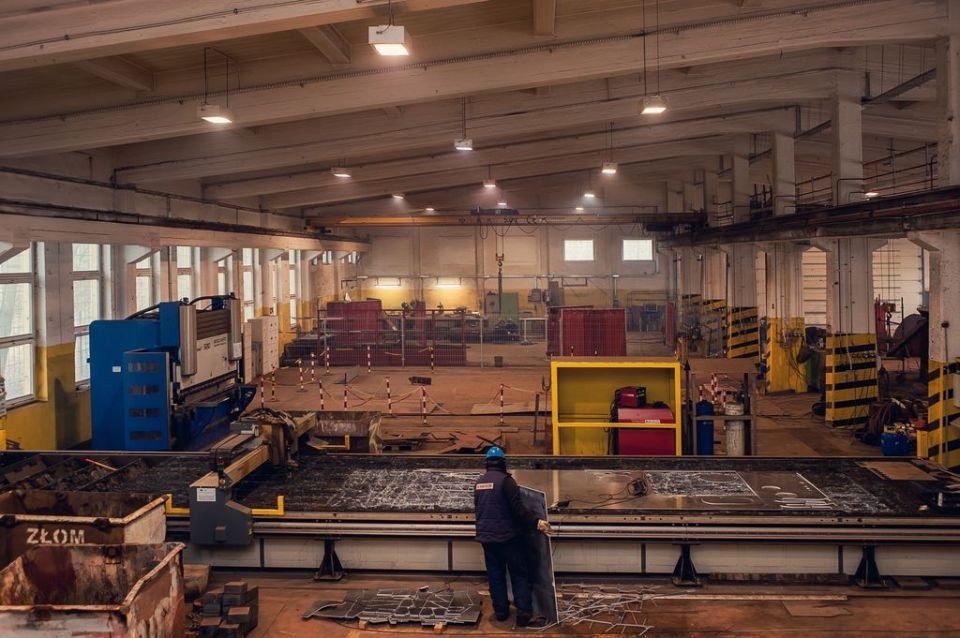

Plasma burner
3000 x 12000 up to 120 mm for steel;
aluminium, acid-proof and stainless steel up to 25-30 mm

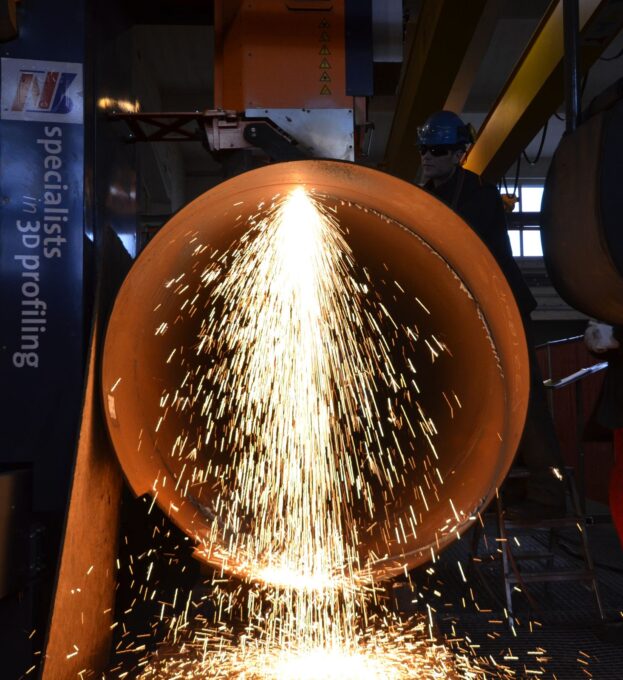

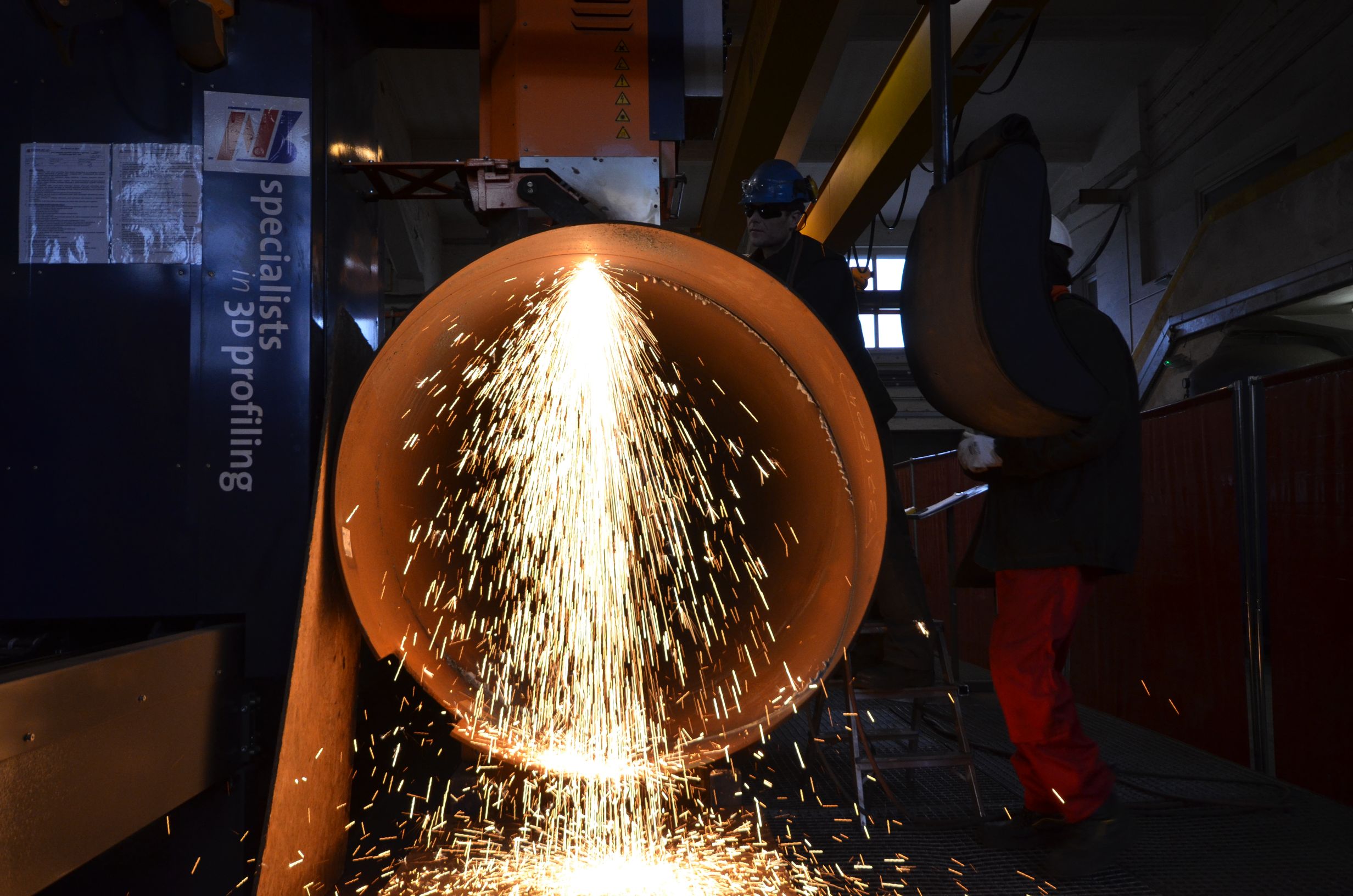

3D cutting
![]() | ![]() | ![]() | |
Pipes | 48 mm - 1125 mm (2" - 48") | Max 12 t | 12,5 m* 40' * |
![]() | ![]() | ![]() | ![]() | ![]() | ![]() | ![]() | ![]() | |

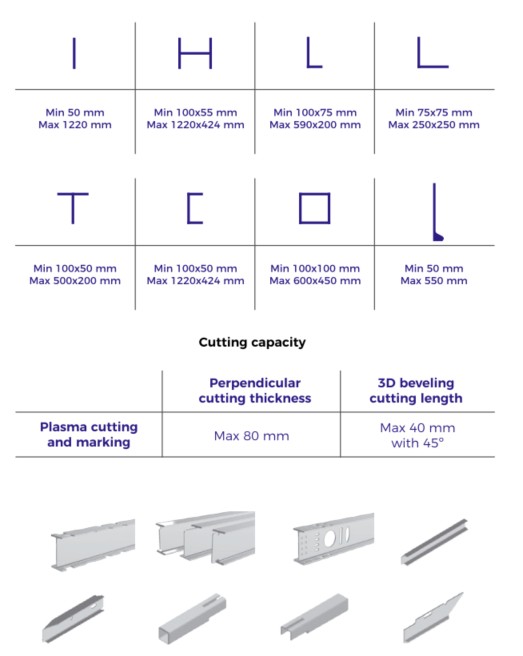

Beams | Min 50 mm Max 1220 mm | Min 100x35 mm Max 1220x424 mm | Min 100x75 mm Max 590x200 mm | Min 75x75 mm Max 250x250 mm | Min 100x50 mm Max 500x200 mm | Min 100x50 mm Max 1220x424 mm | Min 100x100 mm Max 600x450 mm | Min 50 mm Max 550 mm |
Anti corrosion
copper slag
grit blasting
hydro-dynamic spraying
